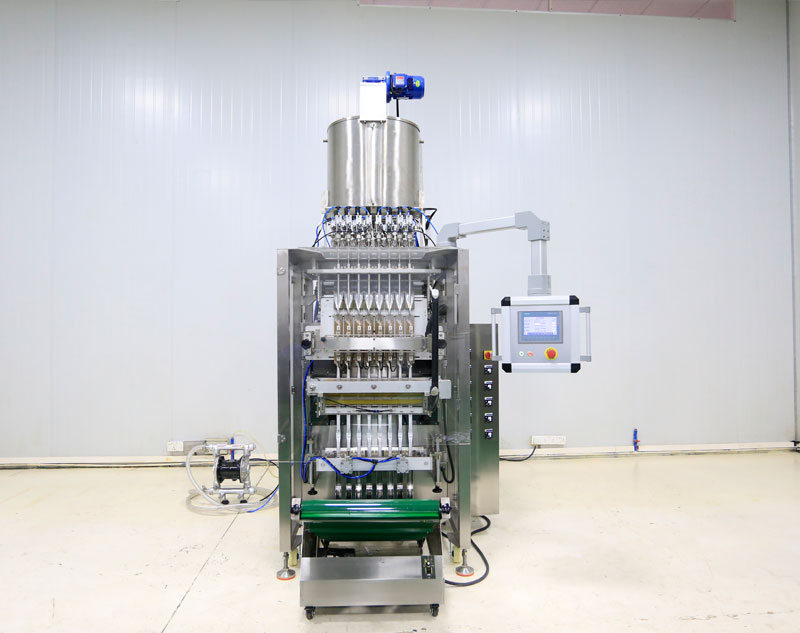

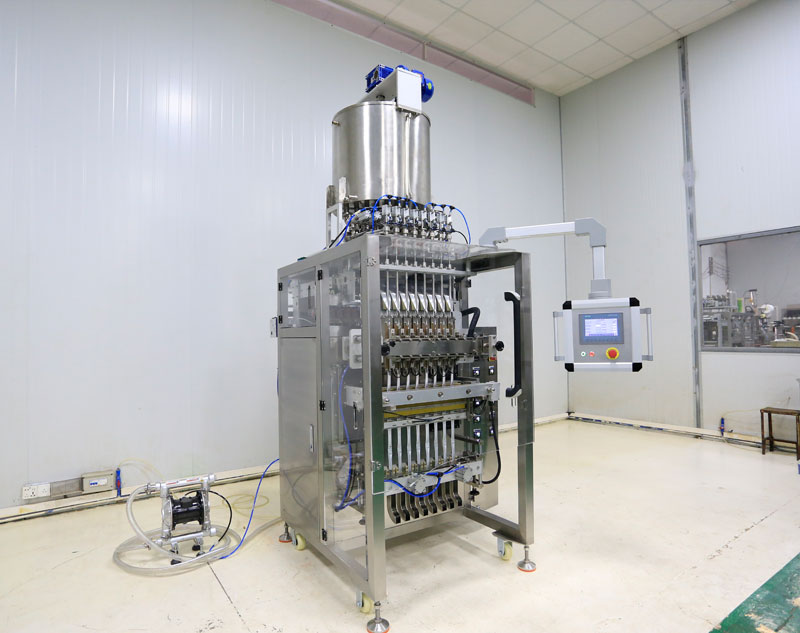

Product model：CY300BY/CY600BY/CY900BY
of liquid, paste, sauce and other products in medicine, food, daily chemicals, health products, pesticides, cosmetics and other industriesSuch as mouthwash, honey, cosmetics, soy sauce, oil, fruit juice, drinks, liquid medicine, etc
We can help you find the goods you want by phone
Machine parameters
| Model | CY300BY | CY600BY | CY900BY | |
| Lanes number | 2-6 lanes | 3-12 lanes | 4-18 lane | |
| Capacity | 25--40 / Max.25-40cycle/min/lane | |||
| Bag size | L 50-180mm W:17-70mm | L::50-180mm W:17-95mm | L::50-180mm W:17-105mm | |
| Film width&thickness | Max.300mm,0.07--0.1mm | Max.600mm,0.07--0.1mm | Max.900mm,0.07--0.1mm | |

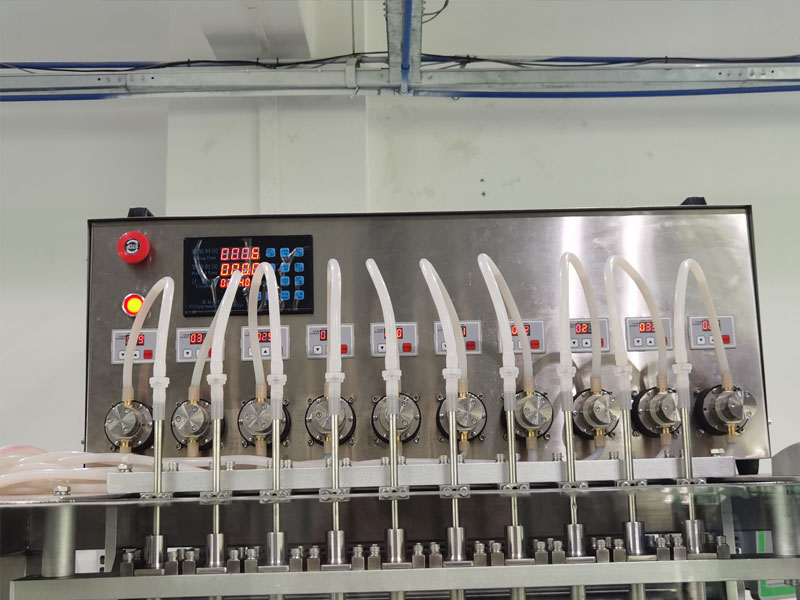

| Measuring Method | 1.Piston pump;2. Peristaltis pump;3. Ceramic pump;4. Rotarc pump | |||
| Sealing type | Back sealing/stick bag | Back sealing/stick bag | Back sealing/stick bag | |
| Cutting type | 1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut | |||
| Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw | |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | |
| Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm | |
| Weight | 400kg | 600kg | 950kg | |
Machine details

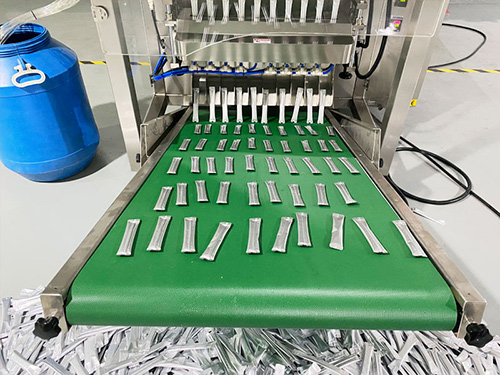

Finished product transportation
Electrostatic device 2
an electric appliance

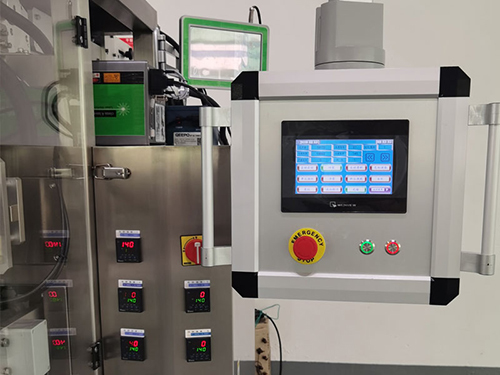

Electric box 1

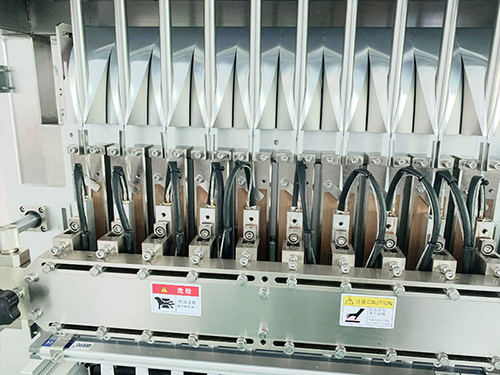

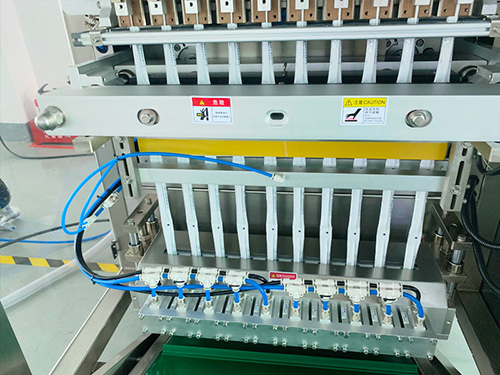

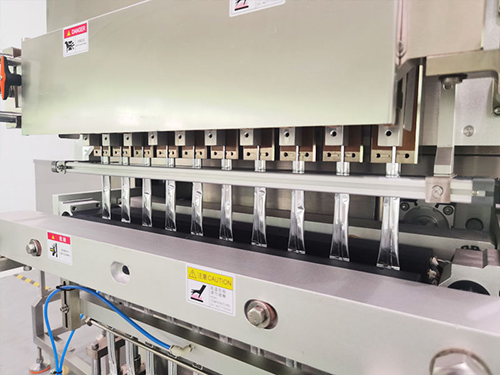

Transverse sealing device
piston
Laser hit 1

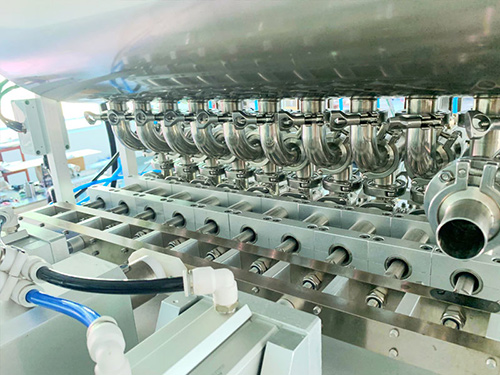

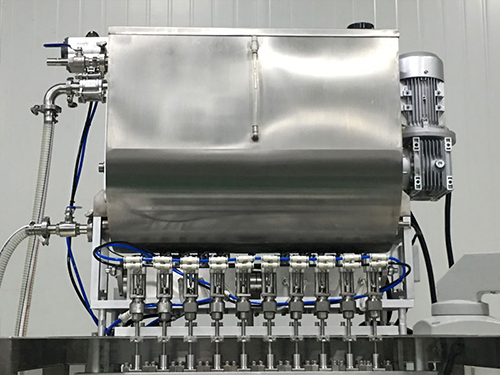

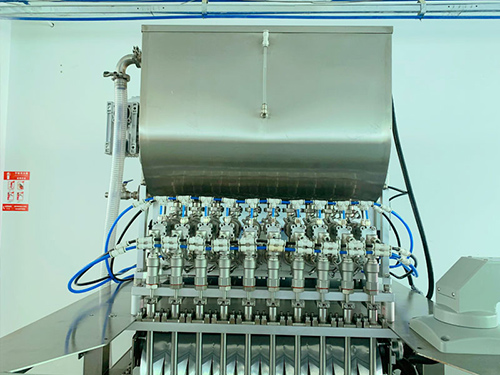

Bucket and piston pump
Blanking
Liquid bucket
Longitudinal sealing device
Machine video introduction

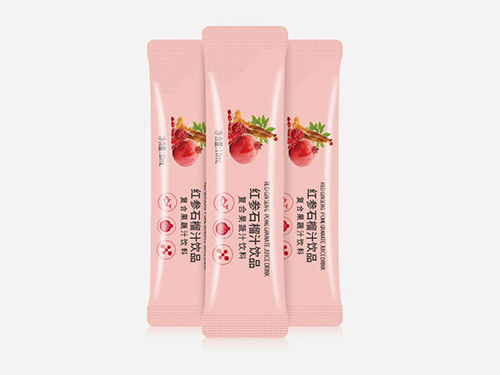

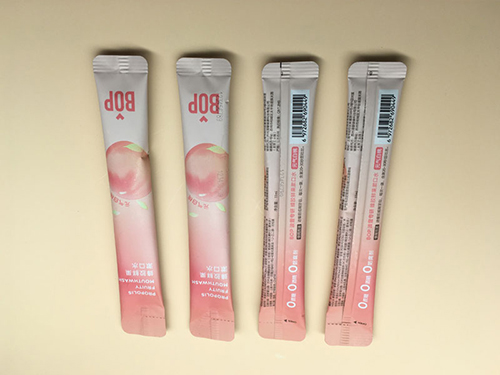

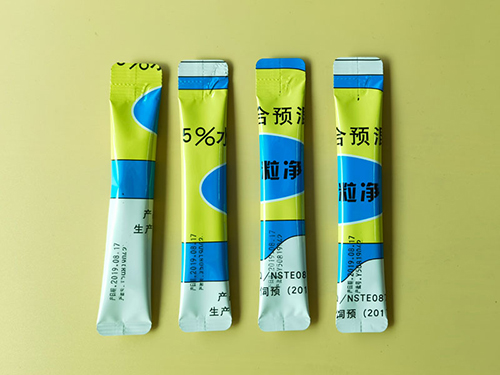

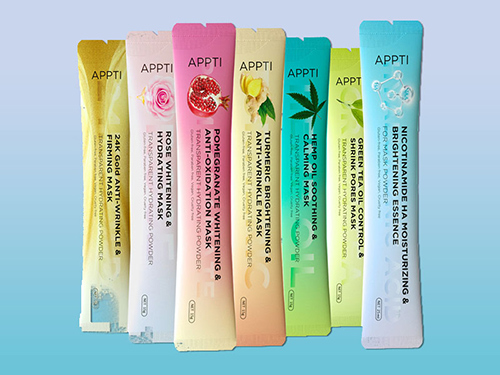

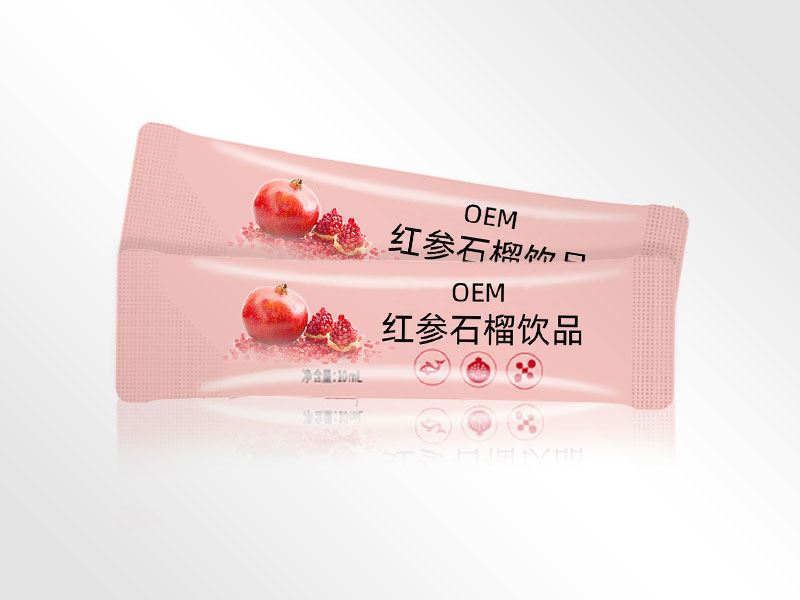

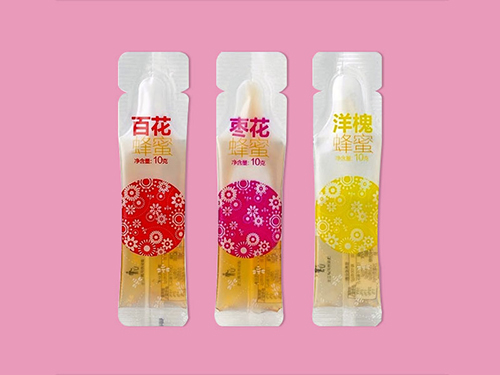

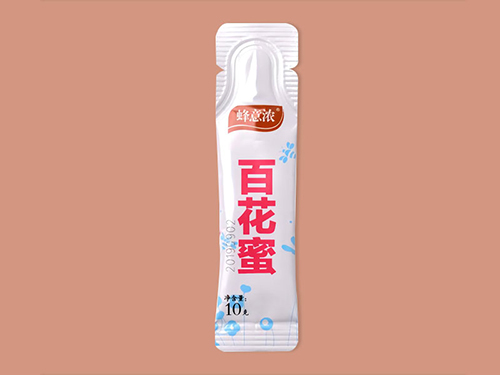

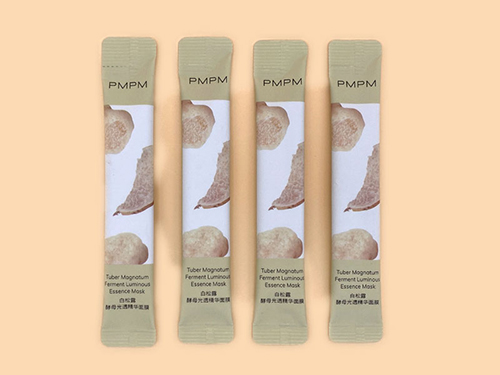

Effect of packaging sample bag
