Granular packaging machine for granules

Product model：CY300K/CY600K/CY900K

　　Lanes number：2-16lanes

　　Capacity：30--50 / Max.30-50cycle/min/lane

　　Bag size：L：50-180mm W：25-110mm

　　Film width&thickness：Max.300-900mm，0.07--0.1mm

　　Measuring Method：1、Vomuletric cup;2、weigher

　　Sealing type：3 side sealing

　　Cutting type：1、Straight cutting;2、Zig zag cutting 3、Round cutting;4、Die-cut

　　Power supply：1N+PE/50HZ/AC220V/380V/3.5-7.5kw

　　Air consumption：0.8 MPA 0.8m3/min

　　Weight：600kg

　　The three sided sealing multi row packaging machine for herbal tea granules can automatically complete bag making, measurement, cutting, sealing, and cutting. It is compatible with rounded corner bags, irregular bags, flat bags, and serrated bags. This machine is suitable for packaging herbal tea granules, enzyme granules, instant coffee, juice powder, white sugar, oats, and other materials.

We can help you find the goods you want by phone

Consult immediately 18676947539

Machine video introduction

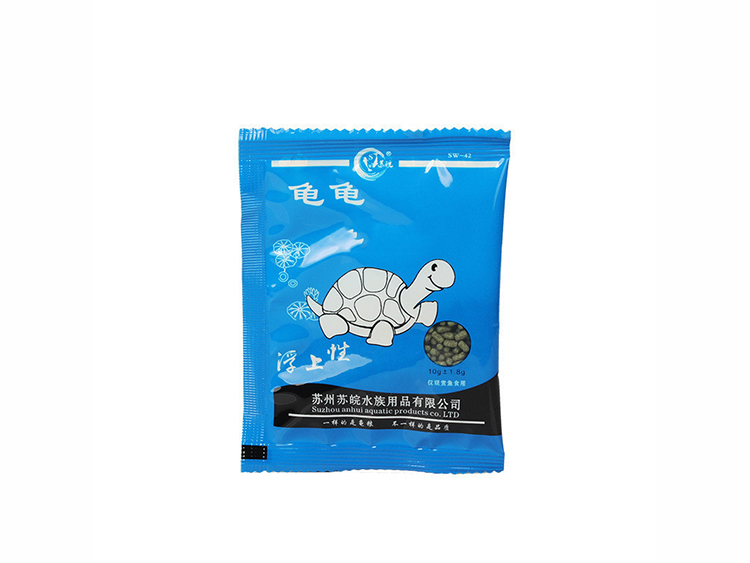

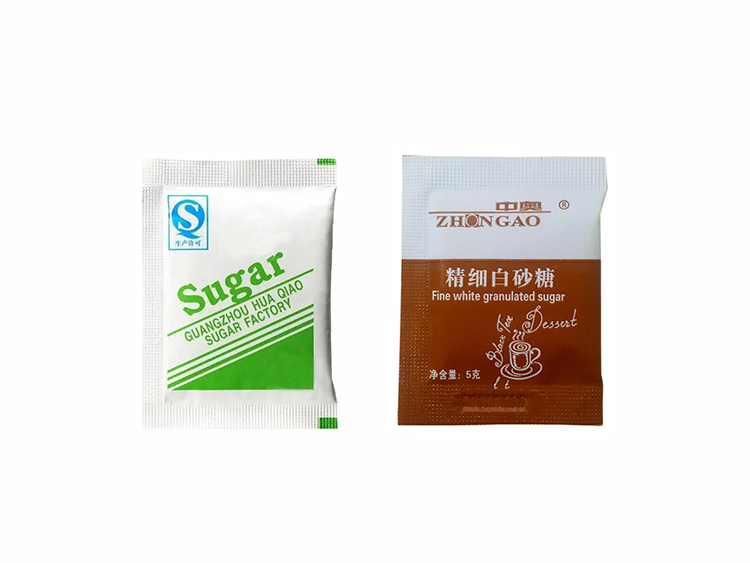

Packaging sample bag

Machine parameters

Model	CY300K	CY600K		CY900K
Lanes number	2-4 lanes	3-10 lanes		4-16 lanes
Capacity	30--50 / Max.30-50cycle/min/lane
Bag size	L：50-180mm W：25-75mm	L：50-180mm W：25-100mm		L：50-180mm W：25-110mm
Film width&thickness	Max.300mm，0.07--0.1mm	Max.600mm，0.07--0.1mm		Max.900mm，0.07--0.1mm
Measuring Method	1、Vomuletric cup；2、weigher
Sealing type	3 side sealing	3 side sealing		3 side sealing
Cutting type	1、Straight cutting；2、Zig zag cutting；3、Round cutting；4、Die-cut
Power supply	1N+PE/50HZ/AC220V/380V/3.5kw	1N+PE/50HZ/AC220V/380V/5.5kw		1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption	0.8 MPA 0.8m3/min		0.8 MPA 0.8m3/min	0.8 MPA 0.8m3/min
Dimension	13859182005mm	168513002005mm		170016002500mm
Weight	400kg	600kg		950kg
